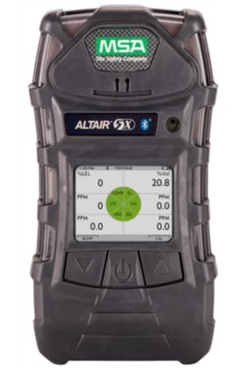

ALTAIR® 5X Multigas Detector

 Home / Product / Gas Detection / ALTAIR® 5X Multigas Detector
ALTAIR® 5X Multigas Detector

ALTAIR® 5X Multigas Detector

ALTAIR® 5X Multigas Detector

PID now available!

The ALTAIR 5X Gas Detector is capable of measuring up to 6 gases simultaneously and is now available with integrated PID sensor for VOC detection. Driven by advanced MSA XCell® Sensor Technology, the ALTAIR 5X Gas Detector delivers faster response time, better stability, accuracy, longer service life, and cost savings over the life of the instrument.

Send Enquiry
  •  Detects combustible gases in LEL and/or volume percentage range, oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, ammonia, chlorine, VOCs, and many others depending upon sensor configuration.
  •  Rugged overmolded polycarbonate housing provides unsurpassed durability, including ability to survive 10-ft. (3m) drop; IP65-certified.
  •  Field-proven integral pump provides consistent gas flow, eliminating concerns of externally-attached components.
  •  High performance XCell Sensors last longer:
  •   Typical life greater than 4 years for combustible, O2, CO/H2S, SO2, CO/NO2 and CO (high concentration) sensors.
  •  Typical life greater than 3 years for NH3 and Cl2 sensors.
  •  Most sensor response and clear times < 15 seconds.
  •  Less calibration gas used:
  •   Requires about half of test gas typically used for calibration and bump tests.
  •   Rapid bump test gives results in less than 10 seconds for most common sensor configurations.
  •   Span calibration time of 60 seconds for most common sensor configurations.
  •  MotionAlert feature option tells others that user has become immobile.
  •  InstantAlert feature provides manual alarm to alert others as to a potentially hazardous situation.
  •  PID option allows for accurate, reliable VOC response with programmable reference factors.
  •  Large buttons and bright display provide easy operation, even when users wear gloves.
  •   Exclusive end-of-sensor warning cautions users when unit's sensor nears end-of-life.
  •  Versatile MSA Link™ Software allows users to transmit data to a computer.
  •  Compatible with GALAXY® GX2 Test System and MSA Link Pro Software for fleet management.
  •  Wireless bluetooth included standard.
Related Resources
  •   Microsite
  •   Cost of Ownership Calculator
  •   Interactive Simulator

1.Sampling Line, Altair 5X 25 Ft

2.SAMPLING LINE : ALTAIR 4/ALTAIR5,10 FT

3.SAMPLING PROBE,STRAIGHT,AIR-LINE,1 FT

4.Altair 5X MONO DISPLAY with O2 (0-30%), CO, H2S, LEL 100% without 10 ft. S.Line & 1 ft. probe

5.KIT:ALT5X W/PRB, MONO, LEL/O2/CO/H2S, UL

6.Altair 5X COLOUR DISPLAY with O2 (0-30%), CO, H2S, LEL 100%, with 10 ft. S.Line & 1 ft. probe

7.Altair 5X COLOUR DISPLAY with O2, CO, H2S, LEL, SO2 with 10 ft. S.Line & 1 ft. probe

8.ALTAIR 5X WITH LEL METHANE O-100% LEL (0.5%VOL), O2 (0-30%) W/ GLOBAL POWER SUPPLY W/O S LINE PROBE

9.ALTAIR 5X wireless with LEL METHANE O-100% LEL, O2 (0-30%),CO,H2S W/O S LINE PROBe

10.Altair 5X Mono display with LEL, without S. Line & Probe

11.Altair 5X MONO DISPLAY with O2 (0-30%), CO, H2S, LEL 100%, CO2 0-10% Vol. w/o 10 ft. S.Line & 1

12.Altair 5X MONO DISPLAY with O2 (0-30%), CO, H2S, LEL 100%, CL2, without 10 ft. S.Line & 1 ft. probe

13.Altair 5X MONO DISPLAY with O2 (0-30%), CO, H2S, LEL 100%, NH3, without 10 ft. S.Line & 1 ft. probe

14.Altair 5X Mono with LEL(0-100%),O2(0-30%),SO2(0-20PPM),CL2(0-10PPM)without10ft S.Line &1ft Probe

15.Altair5X COL. DISPLAY with O2(0-30%), CO, H2S, LEL, SO2(0-20 ppm) W/Pwr supply,, w/o s.line & probe

16.Altair 5X with COLOR DISP, LEL 100% , O2(0-30%), NO2 (0-20 ppm), CO sensor without 10 ft. S.Line

17.Altair 5X with O2 & LEL (IR) 0-100% Propane

18.Altair 5X MONO w/ O2 (0-30%), LEL (0-100%), CH4(0-100%) by vol w/ 10 ft. S.Line & 1 ft. probe

19.Altair 5X MONO w/ O2 (0-30%), LEL (0-100%), CO, H2S,CH4(0-100%) by vol w/ 10 ft. S.Line & 1 ft.

20.Altair 5X with COLOR DISP & wireless, LEL100% , O2(0-30%), CO sensor w/o 10 ft. S.Line & 1 ft.
